Vestal and Metal Products

During cold times a proper working fireplace can generate heat and keep a building smoke free. Portland Stone Ware has been supplying Vestal building products and fireplace components to make every fireplace efficient working. For over 65 years, Vestal Manufacturing has provided quality USA-made gray iron castings. Below is a list of the common parts and their specs.

vestal fireplace

Ash Caddys

PSW Item #
Description
Size
Vestal Part #
D01124
Cast Iron Grill, Galvanized Inner Pail
Pail: 9" X 9", 7" Depth
24-004

Ash Dumps

PSW Item #
Description
Size
Vestal Part #
D0400002
Vented Cast Iron With Outside Air
4 1/2" X 9"
24-015
D0400003
Solid Cast Iron
4 1/2" X 9"
24-001

Brick Vents

PSW Item #
Description
Size
Vestal Part #
D040009
Aluminum Al-1 (Replaces 1 Brick)
2 3/8" X 7 7/8" X 3 5/8"
37-025
D040010
Aluminum Al-2 (Replaces 2 Brick)
5 1/16" X 7 7/8" X 3 5/8"
37-035
D01123
Cast Iron/sliding Shutter V364
8 1/4" X 2 1/2" X 2 3/4"
37-020

Clean Out Doors

PSW Item #
Description
Size
Vestal Part #
D02001
Solid Cast Iron
8 X 8
26-001
D03001
Steel St-88
8 X 8
26-011
D0200001
Cast Iron Import
8 X 8
26-002
D02002
Vented Cast Iron For Outside Air
8 X 8
26-025
D0202
Solid Cast Iron
10 X 8
26-003
D0203
Solid Cast Iron
12 X 10
26-005

Damper Control

PSW Item #
Description
Size
Vestal Part #
D01111
Rotary Control R-1
(For Sizes 24" Thru 48")
15-001
D01113
Poker Control
(For Sizes 24" Thru 48")
15-003
D01129
Rotary Control R-130
W/ 30" Rod
97-085

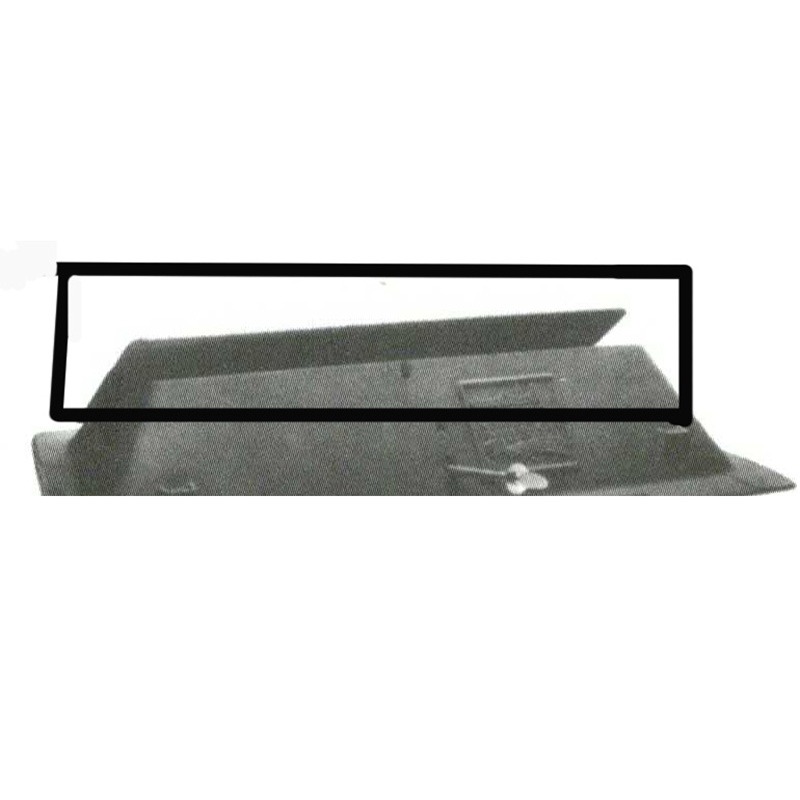

Damper Lids

PSW Item #
Description
Size
Vestal Part #
D0100010
Lid
24"
97-010
D0100011
Lid
30"
97-011
D0100012
Lid
33"
97-012
D0100013
Lid
36"
97-013
D0100014
Lid
42"
97-014
D0100015
Lid
48"
97-015

Foundation Vent

PSW Item #
Description
Size
Vestal Part #
D04007
Stamped Aluminum Vent With Screen & Shutter
16" X 8"
37-008

Lead Flashing

PSW Item #
Description
Size
Vestal Part #
H0400001
6" Rolled Sold By Pound
6" X 32'
Not Applicable
H0400002
8" Rolled; Sold By Pound
8" X 30'
Not Applicable
H0400003
10" Rolled; Sold By Pound
10" X 24'
Not Applicable
H0400004
12" Rolled; Sold By Pound
12" X 20'
Not Applicable
H0400005
14" Rolled; Sold By Pound
14" X 17'
Not Applicable
H0400006
16" Rolled; Sold By Pound
16" X 15'
Not Applicable
H0400015
20" Rolled; Sold By Pound
20" X 12'
Not Applicable

Lymance Top Sealing Dampers

PSW Item #
Description
Size
Vestal Part #
D01114
Model Ly88, Constructed Of Stainless Steel & Aluminum
Outside Flue Fits: 6 3/4" X 6 3/4" To 9" X 9"
20-114
D01119
Model Ly913, Constructed Of Stainless Steel & Aluminum
Outside Flue Fits: 6 1/2" X 10 1/2" To 9" X 12 3/4"
20-107
D01115
Model Ly1313, Constructed Of Stainless Steel & Aluminum
Outside Flue Fits: 10 1/8" X 10 1/8" To 12 3/4" X 12 3/4"
20-108
D01117
Model Ly1216, Constructed Of Stainless Steel & Aluminum
Outside Flue Fits: 9 1/4" X 13" To 11 3/4" X 15 1/2"
20-109
D01118
Model Ly1318, Constructed Of Stainless Steel & Aluminum
Outside Flue Fits: 9 5/8" X 15" To 12 3/4" X 17 1/2"
20-110

Multi-Opening Dampers

Multi-Opening Fireplace Damper Installation Guide

PSW Item #
Description
Size
Vestal Part #
D01017
All Steel, Chain Control, Model #3016
30" X16"(Throat), Flue Outlet 13"x18", 13 1/2" High
08-001
D01014
All Steel, Chain Control, Model #3320
33" X20"(Throat), Flue Outlet 18"x18", 16" High
08-002
D01015
All Steel, Chain Control, Model #3620
36" X20"(Throat), Flue Outlet 18"x18", 18 5/8" High
08-003
D01016
All Steel, Chain Control, Model #4220
42" X20"(Throat), Flue Outlet 18"x24", 21 1/2" High
08-004
D01018
All Steel, Chain Control, Model #4824
48" X24"(Throat), Flue Outlet 20"x24", 21 1/2" High
08-005

Outside Air Kits

PSW Item #
Description
Size
Vestal Part #
D04002
Mokr Fireplace Ventilator (Installs Rear Of Fireplace)
3" X 16 Ga Tubing, Adjustable From 9"-10"
50-047
D04003
Mok Fireplace Ventilator (Installs Side Of Fireplace)
3" X 16 Ga Tubing, Adjustable From 19"-33"
50-048
D04001
Model Oa, Outside Air Kit
6" Air Supply Adjusts 21" Min To 38" Max
50-011

Poker Control Dampers

PSW Item #
Description
Size
Vestal Part #
D01001
All Cast Iron, Model #24
Throat: 24" X 18", Depth 10", Height 6"
01-001
D01002
All Cast Iron, Model #30
Throat: 30" X 23", Depth 10", Height 6"
01-002
D01003
All Cast Iron, Model #33
Throat: 33" X 26", Depth 10", Height 6"
01-003
D01004
All Cast Iron, Model #36
Throat: 36" X 29", Depth 10", Height 6"
01-004
D01005
All Cast Iron, Model #42
Throat: 42" X 35", Depth 10", Height 6"
01-005
D01006
All Cast Iron, Model #48
Throat: 48" X 41", Depth 10", Height 6"
01-006
D01007
All Cast Iron, Model 54"
01-007
D01008
All Cast Iron, Model 60"
01-008
D0100009
All Cast Iron, Model 72"
01-009

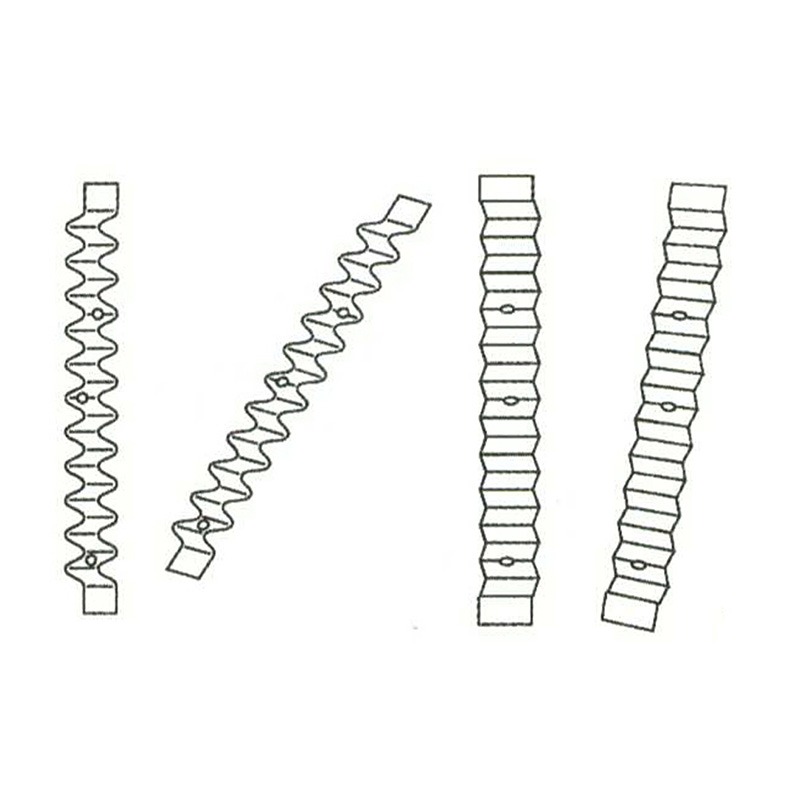

Vestal Wall Ties

PSW Item #
Description
Size
Vestal Part #
H0800001
H-22 Herringbone 500
⅞" x 6⅜"
86-004
H0800002
H-28 Herringbone 1/m
⅞" x 6⅜"
86-003
H0800003
S-22 Straight 500
⅞" x 6⅜"
86-002
H0800004
S-28 Straight 1/m
⅞" x 6⅜"
86-001

Vestalaires

PSW Item #
Description
Size
Vestal Part #
G0133
Model 42, Circulator Fireplace
Fireplace Opening: 42"x32", Overall Height 58 1/4"
50-004
G0134
Model 50, Circulator Fireplace
Fireplace Opening: 50"x34", Overall Height 63 3/4"
50-005
G0102
Grille, Model 9, Stamped Steel 8x8
Grille Size: 9 3/8" X 9 3/8", Housing Size 7 1/8"x 7 1/8"
50-007
G0105
Electric Fan, Model F-9, Motor, Fan & Mounting Bracket 100 Cfm
Fits: 9 Grilles, 5" Blade Span
50-008

Wire Mesh

PSW Item #
Description
Size
Vestal Part #
H01001
Wire/Metal Lath 2½"
27" X 96"
Not Applicable
