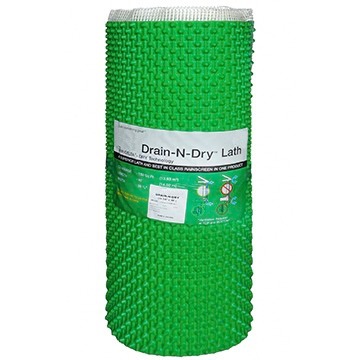

Drain-N-Dry™ Lath

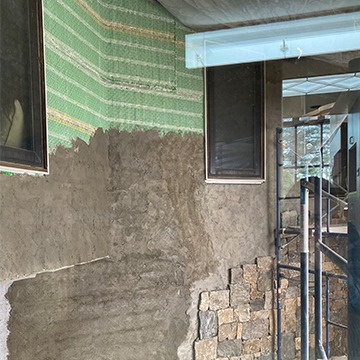

Drain-N-Dry™ Lath is your product for all mortar veneer projects. This product is the reinvention of the draining and drying wall system that unifies each critical component into a single, high-performance product – one, that requires less fasteners and fewer penetrations. What’s more, by seamlessly integrating a chemical and corrosion resistant fiberglass lath, a 10mm rainscreen and a secondary water-resistant barrier into individual 150-square foot, easy-to-cut, lightweight rolls, the Drain-N-Dry™ Lath actually reduces your installation time to help you quickly deliver a final product that will last the test of time.

Drain-N-Dry™ Product Sheet & Accessories
Drain-N-Dry™ Installation Guide
Drain-N-Dry™ Product Data Sheet
Section 07060 Drain-N-Dry™ Product Details

Benefits of Drain-N-Dry™ Lath:

  • Installs fast, providing two additional component systems in one pass: rainscreen & lath
  • Ultimate in moisture management through drainage, drying & moisture vapor control
  • Built in self furring feature to ensure proper mortar embedment, and scratch coat thickness
  • Extremely light and easy to transport, move around the job and install from scaffolding

Accessories:

Topside Ventilation Trim
This part functions to terminate adhered stone veneer or stucco at the top of the system. This part comes with a bug mesh already installed, providing an exit ventilation opening at the top of the wall.

  • Manufactured from UV durable white PVC
  • 2¼” projection from the wall
  • 1¼” attachment Flange
  • Available in 10′ length

Weepscreed Starter Strip
This part functions as a weepscreed termination that allows liquid water drainage and provides an inlet for ventilation drying. It may be used with or without bug mesh or bug screen (Sold Separately).

  • Manufactured from UV durable Mortar Gray PVC
  • ⅞” projection from the wall
  • 3½” attachment Flange
  • Available in 10′ length

Flex-N-Dry™ Tape
Flex-N-Dry™ Tape is a soft joint solution that produces a clean transition at penetrations, material transitions and cladding terminations.

  • Minimal preparation
  • Easy maintenance
  • Durability
  • Flexibility
  • And more – see further details about Flex-N-Dry™ Tape here
