Base Plates

Once connectivity is chosen for the top of the column and beam, determining the base is easy. The Lally Lock Base Plate is designed to connect the plate into the column with a concrete screw through the middle of the plate. Other options involve welding either the standard or beam plate to the column. Using a beam plate is better for larger weight distribution.

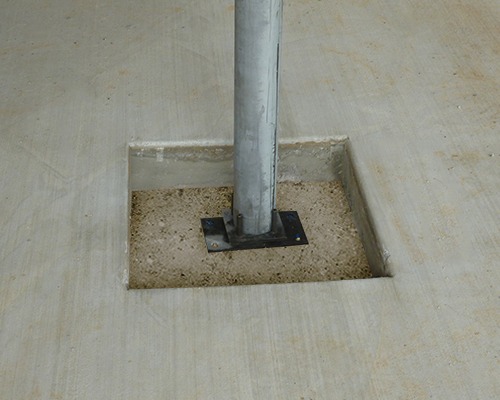

While the Lally Lock Base Plate is simple, the Adjustable Base Set offers a lot more. This base set allows up to 3” adjustability, making it easier to install. When installed correctly, the adjustable plate helps with self-leveling and no shimming is involved. This helps with installing saddle plates and is particularly useful for one person to install. Instead of one person on either end of the column, the adjustable base allows for the cap plate to be installed first then pairing the base and bearing plate set together. Installers can pour a 4” slab floor around the adjustable base set or encase a concrete footing between the bearing and base plate with a grout of at least 3,000 psi filling in the gap. The adjustable base set is a great choice for either new construction or renovations.

Lally Lock Column Base Plate Options

Lally Lock Base Plate

Standard Plate

Adjustable Base

Beam Plate with Ring

Lally Lock Cap & Base Set

Lally Lock Base Plate

This plate is made in low carbon steel in dimensions 5 3/8” x 5 3/8” x 1/8”. The plate has two 5/16” holes, two ¼” slotted holes, four 3/8” oval holes, and four raised lugs to fit outside dimension of the column. One 1/4” counter sink hole is center located to attach the column with one Phillips head concrete screw included in packaging (Phillips head bit not included).

Code for 3.5" Lally Lock Column

B3502

Code for 4" Lally Lock Column

B4002

Standard Plate

The Standard Plate is 5” x 5” with small tabs for the top or base of columns. The steel is 10 Gauge.

Code for 3.5" Column

B0300001

Code for 4" Column

B0300002

Adjustable Base

Holds 55,000 pounds
3” adjustment
Self leveling
2 threaded holes in the bearing plate allow the plate to be connected to the base plate
After installation, the Adjustable Base Set must be encased in concrete

Code for 3.5" for Lally Lock Column

B3504

Code for 4" for Lally Lock Column

B4004

Beam Plate with Ring

Similar to the Springfield plate. This plate has a welded ring that encompasses the top or base of a 3 ½” or 4” column. It is also similar to the lally lock beam plate as it has the same hole configurations. However, this plate has to be welded to the column. It comes in different size plates to fit different beams: 3 1/8” x 8” x ¼” for 2 2x’s, 3 5/8” x 8” x ¼” for 2 LVL, 4 5/8” x 8” x ¼” for 3 2x’s, 5 3/8” x 8” x ¼” for 3 LVL, 6 1/8” x 8” x ¼” for 4 2x’s, and 7 1/8” x 8” x ¼” for 4 LVL. These plates are packaged with GRK screws.

Codes for 3.5" for Lally Lock Column

3 1/8” x 8” x ¼” for 2 2x’s – B3510
3 5/8” x 8” x ¼” for 2 LVL – B3512
4 5/8” x 8” x ¼” for 3 2x’s – B3514
5 3/8” x 8” x ¼” for 3 LVL – B3516
6 1/8” x 8” x ¼” for 4 2x’s – B3518
7 1/8” x 8” x ¼” for 4 LVL – B3520

Codes for 4" for Lally Lock Column

3 1/8” x 8” x ¼” for 2 2x’s – B4010
3 5/8” x 8” x ¼” for 2 LVL – B4012
4 5/8” x 8” x ¼” for 3 2x’s – B4014
5 3/8” x 8” x ¼” for 3 LVL – B4016
6 1/8” x 8” x ¼” for 4 2x’s – B4018
7 1/8” x 8” x ¼” for 4 LVL – B4020

Lally Lock Cap & Base Set

The cap and base set consists of 1 Lally Lock Cap Plate and 1 Lally Lock Base Plate for convenience. For more details, please see the Lally Lock Cap Plate description here, and the Lally Lock Base Plate description above.

Code for 3.5" Lally Lock Column

B3506

Code for 4" Lally Lock Column

B4006
