Delta®

DELTA® is a brand of Dorken Products Inc. They strive to deliver innovative premium quality products to the North American construction market, after being a long time leader in the European building industry. DELTA® products have the longevity, quality, and technology that are desired in the building industry today. At Portland Stone Ware we are not just about supplying the heavy, rock-hard products, but we also seek out premier products that are innovative materials for the building/masonry industries and are complimentary to our other product lines.

While we do have access to the complete DELTA® product line, PSW stocks two systems:

  • Above grade – Building wrap systems known as DELTA®-FASSADE S, DELTA®-VENT SA, DELTA®-DRY and DELTA®- DRY STUCCO & STONE
  • Below grade – Moisture protection systems known as DELTA®-MS, DELTA®- DRAIN, DELTA®-FL, and DELTA®-FOOTING BARRIER

Resources To Guide You

Comparison Chart download icon Product Sheet download icon DELTA® Product Catalog

DELTA® Product Gallery

DELTA® Products

DELTA®-FASSADE S

DELTA®-FASSADE S
DELTA®-VENT SA

DELTA®-VENT SA
DELTA®-DRY

DELTA®-DRY
DELTA®-DRY STUCCO & STONE

DELTA®-DRY STUCCO & STONE
DELTA®-MS

DELTA®-MS
DELTA®-DRAIN

DELTA®-DRAIN
DELTA®-FOOTING BARRIER

DELTA®-FOOTING BARRIER
DELTA®-FL

DELTA®-FL

Above Grade

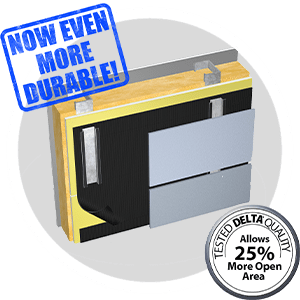

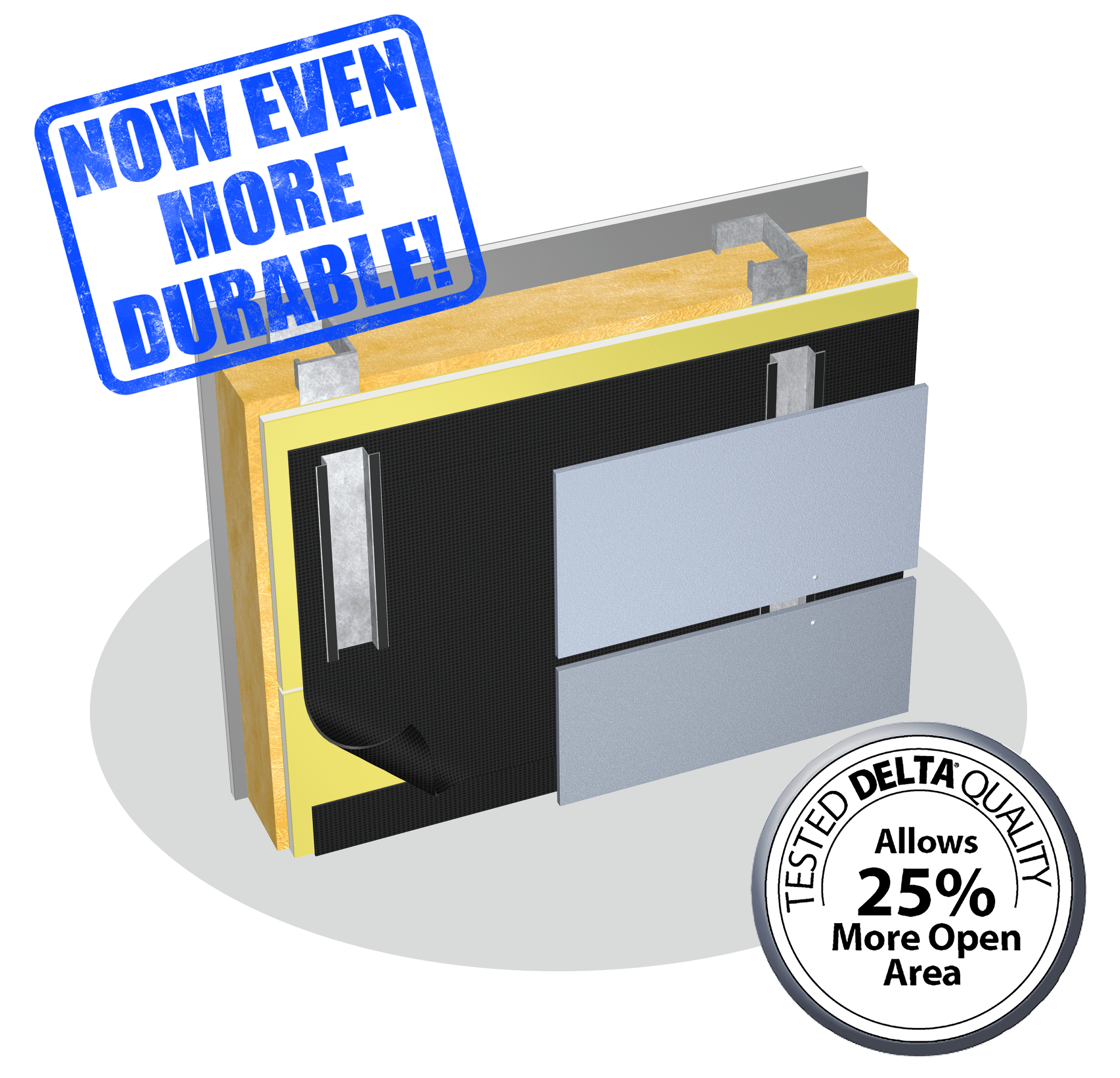

DELTA®-FASSADE S

Air- & Water-Resistive Barriers

  • Durable drainage plane, channels bulk liquid from wind-driven rain and snow to the outside of the structure
  • High vapor permeability, allows moisture within the cavity to escape swiftly via diffusion
  • Watertight; protects the building enclosure from the possible damage of moisture infiltration
  • Lightweight and tear resistant, making installation fast, easy and reliable
  • Matte black; prevents blinding during installation and acts as a blank canvas, allowing the open cladding architecture to shine
  • Designed for permanent UV exposure in open joint cladding systems.
  • Consists of highly tear-resistant polyester substrate with a waterproof coating.
  • Ideal for use in metal and wood stud construction.
  • Easy to install.
  • Sizes and Item Codes
    Roll Sizes – Sq Ft Roll Item Code
    4’11” x 164’ – 807 I07001
  • Problem

    Open-joint cladding systems require extreme water and vapor protection. If the water-resistive barrier is not durable in extreme weather, or stable when exposed to prolonged periods of UV light, the system will fail.

  • Solution

    DELTA®-FASSADE S is the water-resistive barrier that is ideal for open cladding. The watertight membrane is highly vapor permeable and extremely tear resistant. Highly stabilized against damage from UV exposure, the barrier is designed for use in cladding systems that have open joints up to 2” (50 mm) wide, which expose up to 40% of the entire façade surface.

    DELTA®-FASSADE S is the only UV-stable, water-resistive barrier that is tested under and has passed ICC-AC38.

  • Accessories

    DELTA®-TILAXX 10.48oz

    High-performance adhesive and sealant specifically designed for use with all DELTA® air-, vapor-, and water-resistive barriers. 310 ml per cartridge.
    Item Code: I05032

    DELTA®-FAS CORNER 40 per carton

    Preformed to make corners in window and door openings air and water tight.
    Item Code: I06010

    DELTA®-FASSADE TAPE 2.5″

    UV resistant seam tape for use with DELTA®-FASSADE S water-resistive barrier. 2.5″ x 65’7″ per roll.
    Item Code: I07006

    DELTA®-FASSADE FLASHING 4″

    Self-adhering flashing with UV resistant coating for use with DELTA®-FASSADE S water-resistive barrier. 4″ x 65’7″ per roll.
    Item Code: I07003

    DELTA FLASHING 6″

    Used to seal openings for windows and doors to complete the DELTA® air & WRB system. 6″ x 75′ per roll.
    Item Code: I07010

    DELTA FLASHING 9″

    Used to seal openings for windows and doors to complete the DELTA® air & WRB system. 9″ x 75′ per roll.
    Item Code: I07011

DELTA®-VENT SA

Air- & Water-Resistive Barrier

  • Vapor permeable; moisture within the building enclosure can escape through the membrane via diffusion
  • Fully adhered to the substrate, no fasteners are required, eliminating leaks and improving the performance of the building enclosure with increased airtightness, making it ideal for energy-efficient construction
  • Lightweight and tear resistant, the membrane withstands the rigors of job sites, as well as tough wind and weather
  • Two outer layers are made of a high-strength, spun-bonded polypropylene fabric
  • Outer layers are thermally bonded to a highly vapor-permeable, watertight, polymeric middle layer
  • Adhesive is applied to the bottom layer of polypropylene
  • Dramatically exceeds the most stringent requirements of the Air Barrier Association of America (ABAA) based on the results of ASTM E2357 – 11 Standard Test Method for Determining Air Leakage of Air Barrier Assemblies
  • Sizes and Item Codes
    Roll Sizes – Sq Ft Roll Item Code
    4’11” x 115’ – 565.1 I08002
  • Problem

    A high-performance air barrier and moisture barrier resists air movement, and therefore moisture, by increased airtightness. Without the proper air barrier, and moisture barrier, your building could be at risk from moisture infiltration.

  • Solution

    DELTA®-VENT SA is a high-performance, 3-layer water-resistant barrier and air barrier. Highly permeable, watertight, and aggressively self-adhering, the product ensures protection from wind-driven rain.

  • Accessories

    DELTA®-MULTIBAND 60

    Pure acrylic adhesive tape used at overlaps of DELTA® air & water-resistive barriers. 2.3″ x 82′ per roll.
    Item Code: I07008

    DELTA®-FLASHING 6″

    Used to seal openings for windows and doors to complete the DELTA® air & WRB system. 6″ x 75′ per roll.
    Item Code: I07010

    DELTA FLASHING 9″

    Used to seal openings for windows and doors to complete the DELTA® air & WRB system. 9″ x 75′ per roll.
    Item Code: I07011

    DELTA®-FLEXX-BAND

    Stretchable butyl rubber tape used at penetrations. 4″ x 35′ per roll.
    Item Code: I07007

    DELTA®-FAS CORNER 40 per carton

    Preformed to make corners in window and door openings air and water tight.
    Item Code: I06010

    DELTA®-TILAXX 10.48oz

    High-performance adhesive and sealant specifically designed for use with all DELTA® air-, vapor-, and water-resistive barriers. 310 ml per cartridge.
    Item Code: I05032

    DELTA®-HF PRIMER

    Is a solvent-free primer for most construction substrates. 5 L (1.3 gal) pail
    Item Code: I07014

DELTA products, DELTA-DRY

DELTA®-DRY

Rainscreen

  • Structured membrane provides two-sided exterior and interior drainage and ventilation
  • Ventilated air space allows interior water vapor to escape between the sheathing board and the membrane while minimizing condensation that could cause potential damage within the building enclosure
  • Complete capillary break behind the cladding provides ventilation, which captures and drains transient moisture migrating through the wall structure
  • Waterproof, resisting the passage of bulk water from wind-driven rain and snow, and managing water leakage through the cladding
  • Installed outboard of the water-resistive barrier over sheathing board
  • Material is easily cut, and seams are simply butted together, making overlapping unnecessary
  • Exterior cladding material can be installed as usual, right on top of the rainscreen
  • Sizes and Item Codes
    Roll Sizes – Sq Ft/Roll Item Code
    3’3″ x 50′  –  164 I01001
  • Problem

    Without proper ventilation and drainage, moisture can accumulate between the water-resistive barrier and siding of a building. This issue can be particularly evident with absorptive or reservoir claddings. A rainscreen separates the cladding from the building, allowing drainage and moisture evaporation.

  • Solution

    DELTA®-DRY is an innovative ventilated rainscreen for complete moisture protection. It is the ideal protection behind adhered manufactured stone veneer, conventional stucco and other absorptive claddings.

DELTA®-DRY STUCCO & STONE

Rainscreen

  • Structured membrane provides two-sided exterior and interior drainage and ventilation
  • Pre-installed polypropylene fabric mortar screen prevents scratch coats from filling its dimple structure
  • Ventilated air space allows interior water vapor to escape between the sheathing board and the membrane while minimizing condensation that could cause potential damage within the building enclosure
  • Material is easily cut with a utility knife, and seams are simply butted together, making overlapping unnecessary
  • Sizes and Item Codes
    Roll Sizes – Sq Ft Roll Item Code
    3′ x 46′ – 151 I01002
  • Problem

    Without proper ventilation and drainage, moisture can accumulate between the water-resistive barrier and siding of a building. A rainscreen separates the cladding from the building, allowing drainage and moisture evaporation.

    Stucco and stone claddings require specialized moisture control. Absorptive claddings increase the risk of solar-driven moisture, which puts wood substrates at high risk of water damage. A properly installed rainscreen allows for separation and drainage to dry out these problem areas.

  • Solution

    DELTA®-DRY STUCCO & STONE is a ventilated rainscreen with a factory pre-installed mortar screen that reduces scratch coat mortar consumption. Air-gaps on the interior and exterior side of the membrane make DELTA®-DRY STUCCO & STONE the ideal protection behind adhered manufactured stone veneer and conventional stucco.

Below Grade

DELTA products, DELTA MS

DELTA®-MS

Foundation

  • Vacuum-formed dimpled pattern allows incidental water to flow into footing drain
  • Two lines of defense against water intrusion: dimpled membrane provides capillary break; air-gap allows incidental water to freely drain by gravity
  • Eliminates interior dampness and musty odors
  • Reliably bridges foundation cracks and deflects soil moisture, unlike asphaltic sprays
  • Continues to function even if foundation shifts or cracks
  • Resists damage from backfill, like rocks and debris
  • Installs in all types of weather
  • Sizes and Item Codes
    Roll Sizes – Sq Ft Roll Item Code
    5′ x 65’7″ – 328 I05001
    6′ x 65’7″ – 394 I05003
    6’7″ x 65’7″ – 430 I05004
    7′ x 65’7″ – 459 I05005
    8′ x 65’7″ – 527 I05007
    9’10” x 65’7″ – 645 I05009
  • Problem

    Without proper moisture protection, you risk possible damage and hazards from mold and mildew buildup. Protecting your foundations from water and moisture is critical.

  • Solution

    DELTA®-MS is a dimpled membrane that uses our exclusive Air-gap Technology to ensure your basements stay dry and last longer. The vacuum-formed dimpled pattern creates an air gap between the membrane and the foundation, allowing water to drain. By keeping water away from the foundation wall, DELTA®-MS is able to keep basements permanently dry and protected. Unlike sprays, which crack when concrete walls crack, it bridges cracks so no water intrusions can occur. This damp proofing helps ensure more comfortable and healthier living spaces for your homeowners; better efficiency and durability for your buildings; and fewer warranty claims and call-backs for you.

    Unlike sprays, DELTA®-MS doesn’t require specialized safety equipment and you don’t have to wait around for the concrete to cure or the fumes to dissipate so installation can be faster, easier, and more cost effective. The extensive DELTA® Academy Certified-Installer Program helps ensure materials are properly applied, allowing you to provide an industry-leading warranty.

  • Accessories

    DELTA®-Orange FAST’ner

    Multistud fastener for secure attachment of DELTA®-MS. 50 pieces per bag.
    Item Code: I06002

    DELTA®-FLASH 6’x2″

    Angled flashing used at top of flat tab. 33 strips per bundle.
    Item Code: I06004

    DELTA®-GRIP FASTENER

    Attachment aid for perimeter insulation over waterproofing. 100 pieces per box.
    Item Code: I06008

    DELTA®-MOLDSTRIP 6’6″x3″

    Molding used around window cut-outs and at grade level/changes.
    Item Code: I07015

    DELTA®-SEALANT

    Elastic sealing compound used at overlaps and penetrations. 27 fl. oz per tube.
    Item Code: I06006

    DELTA®-MS Accessory Kit

    13 pieces of Flash (6ft), 75 pieces of Fasteners, 2 Quarts of Caulking, 1 box of Concrete Nails
    Item Code: I06001

DELTA products, DELTA-DRAIN

DELTA®-DRAIN

Foundation

  • Polypropylne drainage core allows incoming water to freely drain to the footing perimeter
  • Dimple pattern provides high compressive strength and acts as a highly effective protection layer for the waterproofing material during backfill
  • Available in 6′ and 8′ wide rolls, DELTA®-DRAIN is the largest size drainboard available on the market today, making installation quick and easy
  • Sizes and Item Codes
    Roll Sizes – Sq Ft Roll Item Code
    6′ x 65.7′ – 394 I04001
    8′ x 65.7′ – 527 I04003
  • Problem

    Without a proper drainage system, water can damage virtually any construction project. An improper waterproofing system can allow hydrostatic pressure to build, making any crack in the foundation an access for water damage.

  • Solution

    DELTA®-DRAIN is a highly effective drainboard that controls the flow of below-grade water. Its high water-flow capacity ensures effective drainage. This product is suitable for almost any application in residential and light commercial construction.

  • Accessories

    DELTA®-Orange FAST’ner

    Multistud fastener for the secure attachment of DELTA®-DRAIN. 50 pieces per bag.
    Item Code: I06002

    DELTA®-MOLDSTRIP 6’6″x3″

    Used at terminations of DELTA®-DRAIN.
    Item Code: I07015

    DELTA®-SEALANT

    Elastic sealing compound used at overlaps and penetrations. 27 fl. oz per tube.
    Item Code: I06006

    DELTA®-SCREW FAST’ner

    Used to fasten DELTA®-DRAIN to perimeter insulation. 50 pieces per box.
    Item Code: I06007

    DELTA®-GRIP FAST’ner

    Attachment aid for perimeter insulation over waterproofing. 100 pieces per box.
    Item Code: I06008

DELTA products, DELTA-FOOTING BARRIER

DELTA®-FOOTING BARRIER

Foundation

  • Composed of polyester needle-punched fabric, a polyethylene barrier, and an anti-slip surface layer
  • Easy installation – lay it into the freshly poured concrete footings, smooth into place with a trowel, and form the keyway with the membrane in place
  • Sizes and Item Codes
    Roll Sizes – Sq Ft Roll Item Code
    17.7″ x 82′ I03001
  • Problem

    Often the footings of a building are not properly sealed. The capillary rise of water through the porous cement footing and into the interior of the structure can allow for mold growth, deterioration of moisture-sensitive materials, and unhealthy living conditions.

  • Solution

    DELTA®-FOOTING BARRIER acts as a physical barrier between the footing and the foundation wall, resisting the capillary wicking of water and upward migration of moisture from the footings into the foundation wall, also known as rising damp.

DELTA®-FL

Basement Floor

  • Installed dimple side down, a ventilated air space is created above the slab, allowing equalization of water vapor pressure
  • Seams are simply taped with DELTA®-MOISTURE PROOF TAPE to ensure that moisture cannot migrate inwards through the joint areas
  • DELTA®-FL topped with plywood sheets will allow a variety of floor coverings to be installed: carpeting with underlay, vinyl flooring, hardwood flooring
  • Laminate floors can be directly laid on top of the membrane
  • Provides a reliable capillary break and vapor barrier, ensuring a dry, livable basement
  • Sizes and Item Codes
    Roll Sizes Item Code
    4’9″ x 68’6″ – 328 I02001
    3’6″ x 30′ – 105 I02002
  • Problem

    To turn your basement into a usable, livable space, proper moisture protection is necessary. Moisture barriers are often installed only on the walls of a basement and not the footing. Moisture diffuses from the high area of concentration of the soil, to the low area of concentration in the basement.

  • Solution

    DELTA®-FL is a dimpled, heavy-duty, gray plastic membrane for concrete and slab-on-grade floors that helps to keep moisture out of your basement. The membrane provides a significantly more comfortable floor.

    DELTA®-FL protects sensitive materials by providing a reliable capillary break and vapor barrier. In a conventional basement, dry air in the living space acts as a “magnet” for water vapor migrating up through the concrete. The air gap created by DELTA®-FL allows the water vapor pressure above and below the concrete slab to equalize, while preventing the moisture from migrating further inwards. Hence, moisture does not affect the flooring material and your basement area stays dry and comfortable. The membrane also provides a thermal break, which increases the comfort in your basement and makes the floor feel warmer.

  • Accessories

    DELTA®-MOISTURE PROOF TAPE

    Adhesive tape for sealing of DELTA®-FL joints. Helps to prevent moisture rise from concrete floor. 2.36″ x 108’3″ per roll.
    Item Code: I02004
